W-750SK

The W-750SK cutter submersible pump is designed for domestic sewage and wastewater containing human sewage and water soluble toilet paper only.

  • Advanced shredder/grinding mechanism
  • Double mechanical seal
  • Comes with built in float switch
Features
  • Advanced shredding / grinding mechanism

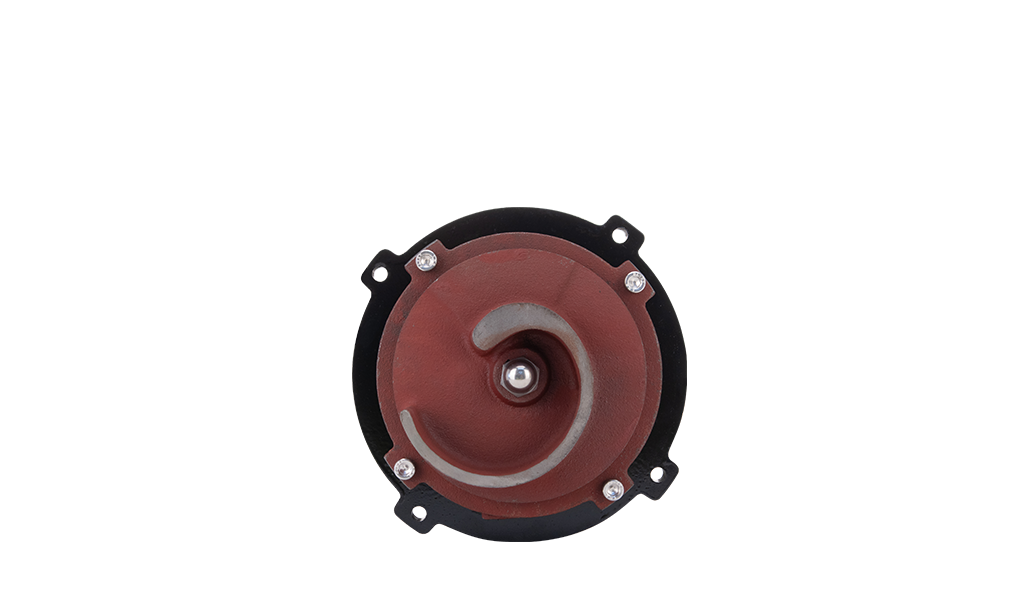

  • Fixed suction cover under impeller having specifically designed edges and grooves in combination with rotating impeller shreds / grinds soft sewage particles for easy pumping without any blockage
  • Surface hardening heat treatment is done on specific areas of the impeller vanes and cutting edges to increase efficiency, reliability and performance
  • Triplex sealing Double Mechanical Seal in oil bath plus an oil seal arrangement for protection of motor
  • Unique epoxy cable sealing protects from water entering motor
  • W-750 SK pump comes with a built-in float switch for automatic liquid level operation
  • All pumps come with standard base mounting.
  • Auto coupling option available for W-750 SK

Pump performance chart

Not suitable for: liquids containing hard solids i.e. sand, stones, gravel, wood, stringy material like clothes, plastic bags, sanitary pads, nappies or tough non water soluble papers like wet wipes, cardboard or rubber.

Variant Item Code Dimensions Max Head Outlet size Stock
W-750SK
W-750SK
Dimensions
463 H x 155 W x 240
Max Head
9m
Outlet size
50mm
In Stock
kW/HP 0.75 / 1.0 Volts/Phase 230-240 / 1 Ph
Full Load Current (Amps) 7 Outlet (mm) 50
Weight (kg)
 22 Min Sump Dimension (mm) 700 x 700 x 700
Cable Length  10m Dimensions (mm) 463 H x 155 W x 240
